| Brand Name: | GENY |
| Model Number: | YC1893D |
| Payment Terms: | L/C,T/T,D/P |
1. Accuracy class : 0.05

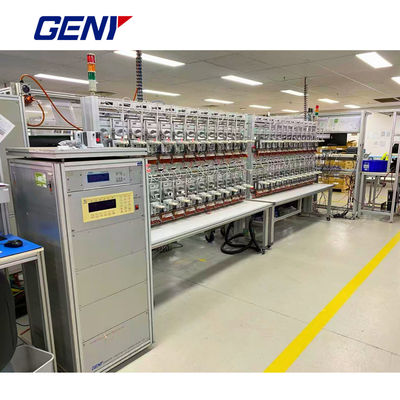

2. Easy to calibrate closed I-P link meters with isolated current transformer(ICT)
|
Technical spec. |
YC1893D-ICT-6 |
YC1893D-ICT-12 |
YC1893D-ICT-24 |
YC1893D-ICT-48 |
|
Number of meter positions equipped ICT |
6 |
12 |
24 |
48 |
|
Accuracy class of ICT |
0.05 / 0.01 |
|||
|
Accuracy |
0.05 |
|||
|
Power Source |
YCS-103-250 |
YCS-103-600 |
YCS-103-1200 |
YCS-103-2500 |
|
Standard Meter |
SZ03A-K6 / SZ03A-K8 (customized) |
|||
|
Scanning Head |
YCG-S Series |
|||
|
Voltage |
|
|||
|
Test voltage output(Phase-Neutral) |
3x(24V~288V)(or customized) |
|||
|
Power of the voltage output |
Max. 3x100VA |
Max. 3x250VA |
Max. 3x500VA |
Max. 3x1000VA |
|
Resolution |
Better than 0.01% of full scale value of range |
|||
|
Setting accuracy |
Better than 0.05% at the final range value |
|||
|
Stability |
Better than 0.005% /h (integration time 150s) |
|||
|
Load regulation from 0~max. load |
Better than 0.01% |
|||
|
Distortion factor |
Better than 0.3% for linear resistance load |
|||
|
Harmonic |
2nd~21st free programmable |
|||
|
Current |
|
|||
|
Test current output |
3x(1mA~100A) |
|||
|
Power of the current output |
Max. 3x150VA |
Max. 3x350VA |
Max. 3x750VA |
Max. 3x1500VA |
|
Resolution |
Better than 0.01% of full scale value of range |
|||
|
Setting accuracy |
Better than 0.05% at the final range value |
|||
|
Stability |
Better than 0.005% /h (integration time 150s) |
|||
|
Load regulation from 0~max. load |
Better than 0.01% |
|||
|
Distortion factor |
Better than 0.3% for linear resistance load |
|||
|
Harmonic |
2nd~21st free programmable |
|||
|
Phase angle |
|
|||
|
Range |
0~360⁰ |
|||
|
Resolution |
0.01⁰ |
|||
|
Setting accuracy |
0.1⁰ |
|||
|
Frequency |
|
|||
|
Range |
45Hz~65Hz |
|||
|
Resolution |
0.01Hz |
|||
|
Error display |
|
|||
|
Type of error display |
Red LED |
|||
|
Resolution of error displays |
8 digitals |
|||
|
Other |
|
|||
|
Voltage supply |
3x220/380V±10%(or customized) 50/60Hz ±2Hz |
|||
|
Ambient temperature |
-10°C~+40°C |
|||
|
Relative humidity |
35%~85% |
|||
1. Installation of ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P links).
2. The meter test system can measure mechanical, electronic mechanical and electronic meters by way of automatic, semi-automatic or manual operation.
3.Meters under testing: 3P4W, 3P3W, 1P2W
4. Testing mode: active power, reactive power, and cross-connected reactive power.
5. Simultaneously measure meters with the same specifications but different meter constants.
6. Automatically position the rotor mark of the disc of the mechanical meter, increasing efficiency.
7. Initiating the test and creep test.
8. Utilising the overload, short voltage circuit and open current circuit protection functions.
9. The synchronised movement of the scanning heads streamlines the control process.
10. The aluminium alloy is a lightweight yet durable and corrosion-resistant material. The testing software, compatible with Windows 2000, XP, 7, 8 and 10, includes a range of functional modules for various modern energy meters. These modules facilitate testing for real-time error, harmonic, demand and influence, among others.
