Grade Single Phase Meter Test Bench For Accurate Energy Meter

Name: Grade Single Phase Meter Test Bench For Accurate Energy Meter
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1891D

Power Supply:

AC220V±10%, 50Hz±2Hz

Output Voltage Range:

24V ... 288V

Output Current Power:

2000VA (Max)

Highlight:

Meter Test Bench

Single Phase Meter Test Bench

2000VA Single Phase Meter Test Bench

Product Description

Grade Single Phase Meter Test Bench for Accurate Energy Meter

Specifications

Main Technical Indicators	Parameter Value
Power Supply	AC220V±10%, 50Hz±2Hz
Ambient Temperature	-10°C ... +40°C
Ambient Humidity	35% ... 95%
Output Voltage Range	24V ... 288V
Output Voltage Power	1000VA (Max)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3% (Full linear load range)
Output Current Range	1mA ... 120A (Up to 230A Max)
Output Current Power	2000VA (Max)
Current Resolution	0.01%
Current Stability	0.02%/120s
Load Change Rate	0.01%
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Phase Adjustment Range	0° ... 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz ... 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s

Convenient Verifying Features:

 Clear high-brightness LED error display

 Wide range current output setting

 Both manual/automatic positioning of the color mark on the plate of the verified meter.

 Centralized overturn of the multi-position scanning head

 Fast and convenient wiring method

 Suit for mechanical meter or electronic meter

 Reliable and stable power source

Flexible system characteristics:

 RS-232 and RS-485 standard interfaces

 Automatic verification by PC

 Manual verification by keyboard

 Simultaneous verification of different constant meters

 Flexible setting of the verification projects

 Software options for multi-constant standard electric energy meters

 Bar code input and network access functions

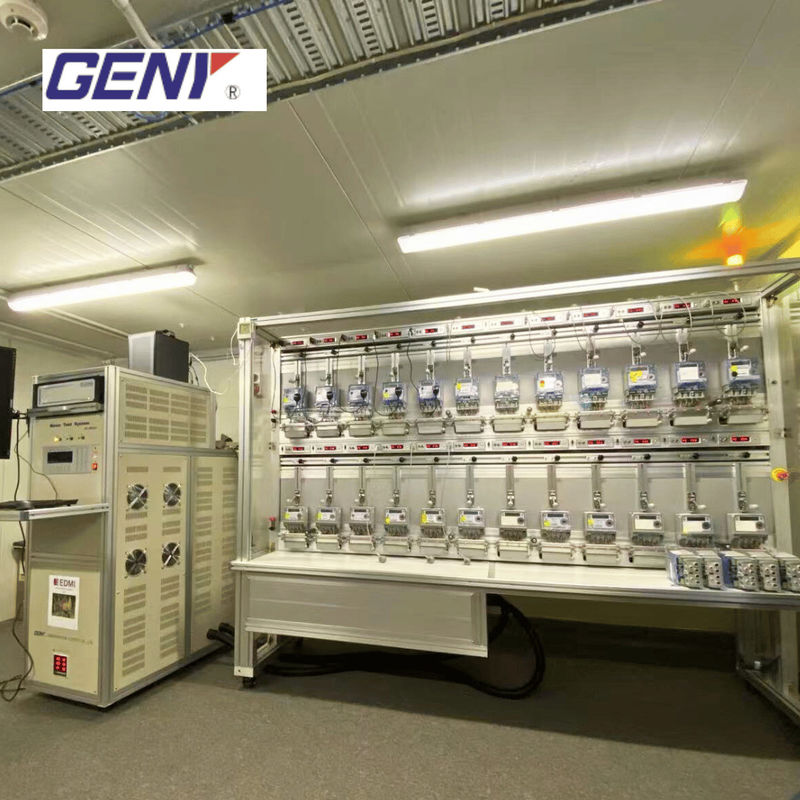

Grade Single Phase Meter Test Bench For Accurate Energy Meter 0

Grade Single Phase Meter Test Bench For Accurate Energy Meter 1

Grade Single Phase Meter Test Bench For Accurate Energy Meter 2

Grade Single Phase Meter Test Bench For Accurate Energy Meter 3
