| Brand Name: | GENY |

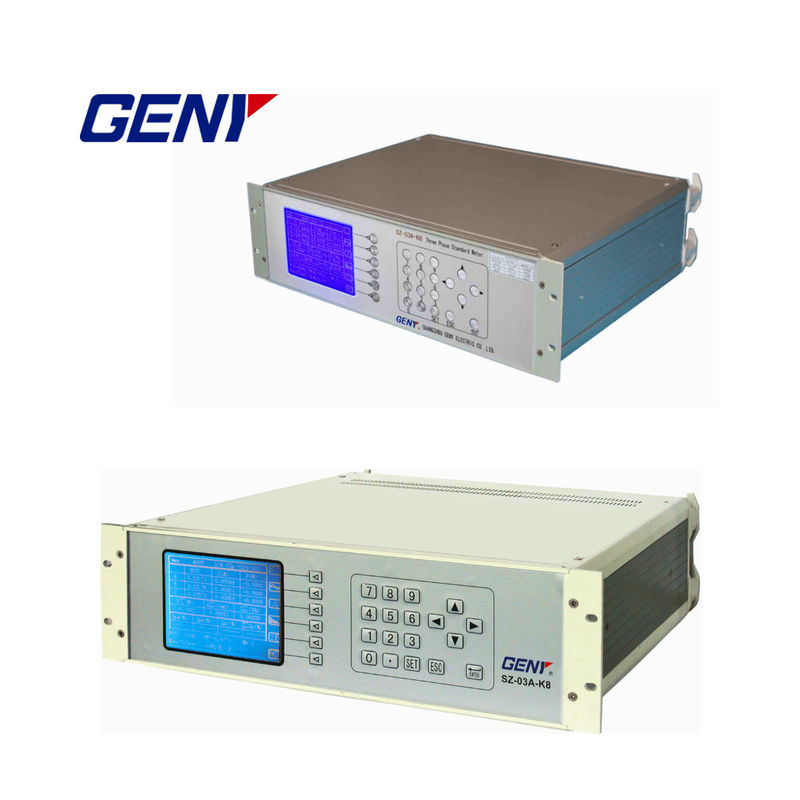

| Model Number: | SZ-03A-K8 |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T,L/C,D/P,T/T |
| Supply Ability: | 5 sets / 1 months |
|
Power supply |
|
|
Voltage |
AC220V ±15% |
|
Frequency |
50Hz ±2Hz |
|
Max power consumption |
45VA |
|
Using condition |
|
|
Environment temperature |
5ºC ~ 50ºC |
|
Relative humidity |
45% ~ 95% |
|
Outside magnetic intensity |
≤ 0.025mT |
|
Frequency range |
45Hz ~ 65Hz |
|
Test current |
|
|
Range |
1mA ~ 160A |
|
Error |
- ±0.02% (100mA~160A) (relative measurement value) - ±0.05% (1~100mA) (relative range full-scale value) |
|
Current display range |
1.000mA ~ 160.000A |
|
Test voltage |
|
|
Range |
50V ~480V (auto range) |
|
Error |
- ±0.02% (50V~480V)? (relative measurement value) - ±0.05% (5V~50V) (relative |
|
|
measurement value) |
|
Voltage display range |
50.000(V) ~ 480.000(V) |
|
Power measure error |
|
|
Active power |
+0.02% (relative measurement value) |
|
Reactive power |
+0.05% (relative measurement value) |
|
Apparent power |
+0.05% (relative measurement value) |
|
Test Power Factor(PF=P/F) Error: 0.05% |
|
|
Display range |
-1.00000 ~ +1.00000 |
|
Energy constant |
CH=107 /108/109/1010/1011/1012 imp/kWh |
|
Measuring modes |
- 4 wire active/ reactive/ cross-connect reactive - 3 wire active/ reactive/ cross-connect reactive - 2 wire active/ reactive |
|
Energy pulse input |
|
|
Frequency |
0.5kHz |
|
Voltage |
24V |
|
Measurement range of input |
|
|
Output |
TTL pulse, load > 2kΏ |
|
Dimensions (W * H * D) |
131mm * 432mm * 470mm |
|
Weight |
16kgs |
