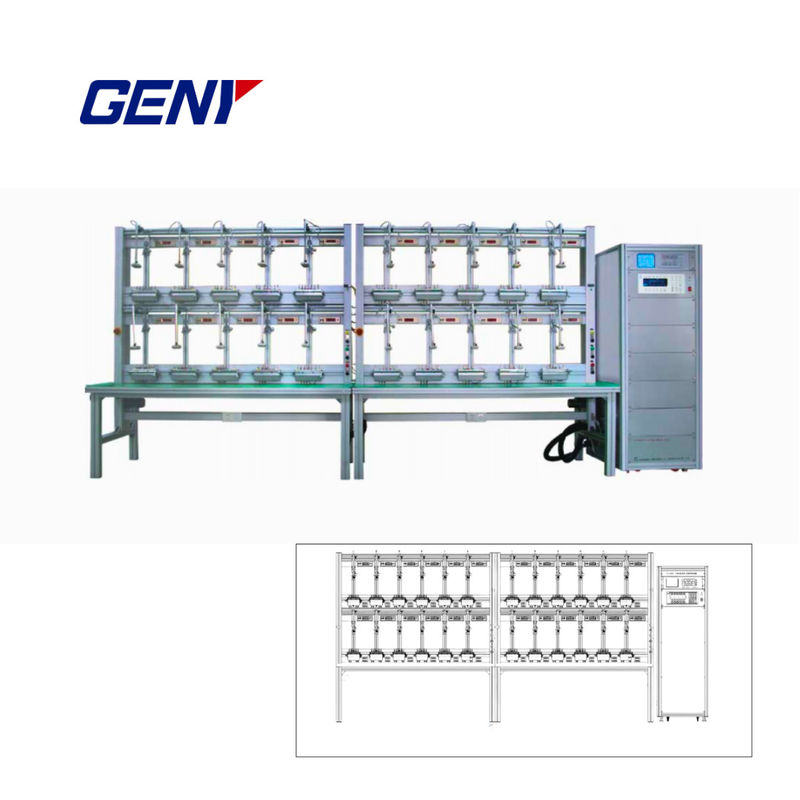

YC1893D Professional Stationary Meter Test System

Name: YC1893D Professional Stationary Meter Test System
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Model:

YC1893D

Accuracy:

0.05 / 0.02

Voltage:

3 ×230/398V±10%

Power Of The Voltage Output:

Max 3x500VA

Stability:

Better Than 0.005% /h

Structure:

All-in-one

Usage:

Energy Meter Calibration, Lab Research

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Precise Voltage Stationary Meter Test System

Professional Stationary Meter Test System

Current Output Stationary Meter Test System

Product Description

YC1893D Professional Stationary Meter Test System

Features and functions:

Parallel communication port for smart meter testing via RS232
Rack terminals for calibration and verification
Calibration/pulsing test for EDMI 3-phase meters
Accuracy testing for reference standard meters
Pre-warming function
Accuracy tests compliant with IEC standards
Creeping and starting current tests
Error repeatability test
Dial test
Influence tests (voltage, frequency, reverse phase sequence, voltage unbalance)
Harmonic and sub-harmonic analysis per IEC standards (IEC 62052-11 / 62053-21/22/23)
Odd harmonic analysis

Customized features:

- Individual/combined calibration (voltage, current, power).
- 24+24 positions; 24 active; relay switch for toggling.
- CT/WC range: 1(6)A, 1(10)A, 5(20)A, 5(100)A, 5(120)A.
- Gating/pulse method.
- DLMS (Mk10M), EDMI Command Line (Mk10E).

Primary Competitive Advantages:

1. High quality product
2. Over 18 months long warranty
3. High accuracy class: 0.05/0.02
4. Can be customized of Three Phase Electric Energy Meter Test bench
5. Extremely high power stability
6. Neutral current test(optional)
7. Timing error test
8. Influence test of voltage, frequency, and harmonic
9. Installing RS232, Ethernet communication port in each meter position.
10. Tilt impact test (optional)

Specification:

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
