OEM Customizable YC1891D Energy Meter Testing System

Name: OEM Customizable YC1891D Energy Meter Testing System
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC-1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC-1891D
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Structure:

All-in-one

Usage:

Energy Meter Calibration, Lab Research

Ambient Temperature:

-10℃ To +40℃

Power Supply:

Three-phase Four-wire 3×220V/380V±15%, 50/60Hz±2Hz

Ambient Humidity:

35% To 85% R.H.

Phase Angle Range:

0 -- 360°

Frequency Range:

45Hz – 65Hz

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Customizable Energy Meter Testing System

Product Description

OEM Customizable YC1891D Energy Meter Testing System

Specifications:

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Description:

1. The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.

2. Meters under testing: 1P2W

3. Testing mode: active power, reactive power, cross connected reactive power

4. With MSVT, can test single-phase meters with closed links between the current and voltage measuring circuits (I-P links)

5. With current output switch, can calibrate 2 element meter(optional)

6. Simultaneously measure meters with same specifications but different meter constants

7. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.

8. Starting test and creeping test

9. With the protection function of overload, short voltage circuit and open current circuit.

10. The swing together of the scanning heads simplifies the control.

11. Aluminum alloy material, light and strong and corrosion resistant

12. The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

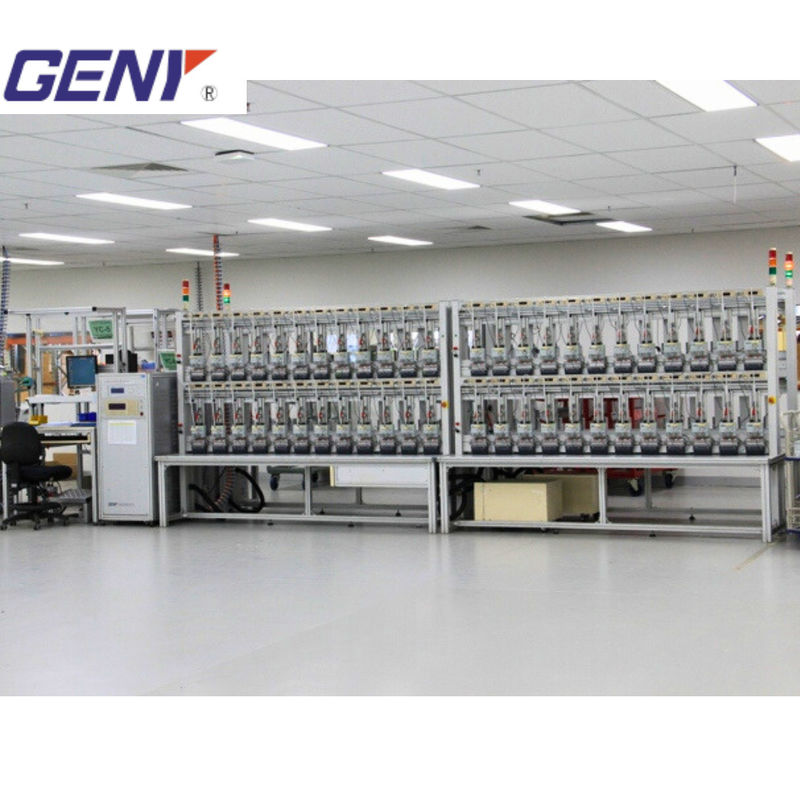

OEM Customizable YC1891D Energy Meter Testing System 0

OEM Customizable YC1891D Energy Meter Testing System 1

*To learn more go to our website http://www.genymetertestequipment.com/
