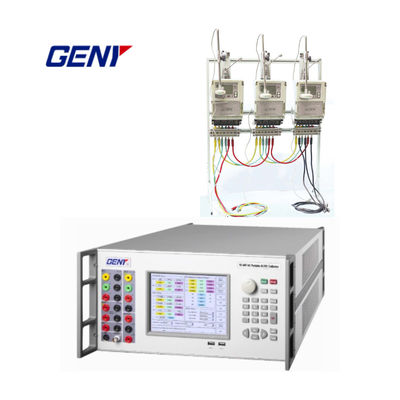

OEM High Precision Portable Meter Test System 0.01% Stability, 0.02%-0.05% Accuracy

Name: OEM High Precision Portable Meter Test System 0.01% Stability, 0.02%-0.05% Accuracy
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T-6C
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T-6C
Payment Terms:	L/C, T/T, D/P
Supply Ability:	50/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC99T-6C

Display:

Digital

Installation:

Direct Connected

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

50/Year

Highlight:

0.01% Stability Portable Meter Test System

0.05% Accuracy Portable Meter Test System

OEM Portable Meter Test System

Product Description

OEM High Precision Portable Meter Test System 0.01% Stability, 0.02%-0.05% Accuracy

Specifications

Environment			Safety
Operation	Relative	Altitude	IP Class	Conformity
Temperature	Humidity	Altitude	IP Class	Conformity
20℃-30℃	40%-85%	<2500m	40	IEC
General Specification		Power supply	AC 220V±15% or 110V±15%
		Frequency	50Hz~60Hz
		Power consumption	100VA-1000VA
		Size & Weight	658440220(mm),30kg



AC Voltage Output			DC voltage output
Three-phase AC high voltage output	Output range	30V, 57.7V, 100V, 220V, 380V, 660V	Range	"+75mV,±1V,±10V;30V,100V,300V,600V
	Stability	0.01%/2min	Stability	0.005%/2min(1V& above);0.01%/2min( 75mV )
	Accuracy	0.02%RG/0.05%RG	Load capacity	100mA( short term 150mA , 10V & below );30mA ( 30V & above )
AC low voltage output	Output range	1V, 10V	Accuracy	0.02%RG Or 0.05%RG(except +75mV )
	Stability	0.02%/2min		0.1%RG(±75mV )
	Accuracy	0.1%RG	Ripple content	0.5%RG
AC Current Output			DC current output
Three-phase AC high current output	Output Range	500mA, 1A, 2A, 5A, 10A, 25A, 30A	Range	±1mA,+20mA ,±100mA;300mA,1A,5A ,10A15A ,25A
	Stability	0.01%/2min	Stability	0.005%/2min
	Accuracy	0.02%RG/0.05%RG	Accuracy	0.02%RG(+1mA/±20mA±100mA)or 0.05%RG(±1mA/±20mA100mA)0.05%RG(300mA/1AV5A/10A/15A/25A);
Single-phase AC small	Output Range	100mA	Ripple content	0.5%RG( 100mA & below );1%RG( 300mA & above )
current output	Stability	0.05%/2min	DC input Voltage Measurement
	Distortion	≤0.2%	Range	±10V
	Accuracy	0.p%RG	Measurement range	0~125%RG
	Power measurement accuracy	Active:0.03%RG/0.05%RG Reactive:0.06%RG/0.1%RG	Accuracy	0.01%RG
Phase factor output	Adjustment Range	-1.0000 to +1.0000	Ripple measurement range	0~200mVrms
	Resolution	0.0001	Resolution	0.001%RG
	Accuracy	±0.0005	DC input Current Measurement
Frequency Output	Adjustment Range	40Hz to 70Hz	Range	±20mA
	Resolution	0.001Hz	Measurement range	0~125%RG
			Accuracy	0.01%RG
			Ripple measurement range	0~2mAms
	Accuracy	±0.002 Hz	Resolution	0.001%RG
	Accuracy	±0.002 Hz	Electrical Energy Error Measurement
harmonic output	times	2~63	Active energy measurement accuracy	0.05%RD(15V~792V,0.05A~30A,PF0.5);0.1%RD(15V~792V,0.02A~0.05A,PF=1);
			Accuracy of reactive energymeasurement	0.1%RD(15V~792V,0.05A~30A,PF20.5);0.2%RD(15V~792V,0.02A~0.05A,PF=1);

	content	0~40%


	phase	0°~359.99°

Key Features and Functions

Versatile Testing: Tests a broad spectrum of AC/DC indicators, digital meters, power meters, and electrical measurement transmitters.
Integrated Standard Sources: Offers three-phase AC, single-phase AC, and DC standard sources.
Advanced RTU Testing: Optional "RTU Calibration Module" for comprehensive RTU functionality testing, including:
Telecommunication shift validation
Digital and pulse quantity assessments
SOE (Sequence of Events) logging
Remote control operation and verification

Key Strengths

Industry Pioneer: Over 20 years of leadership in electric energy meter technology.
Innovative R&D: A dedicated team driving advancements in meter calibration and testing.
Quality Assurance: ISO 9001 certified since 2002, with TQM-trained staff ensuring top-notch product quality.
Extensive Network: A robust marketing network with competitive pricing.
Comprehensive Support: Our service team provides maintenance, training, and software updates to meet customer needs.
