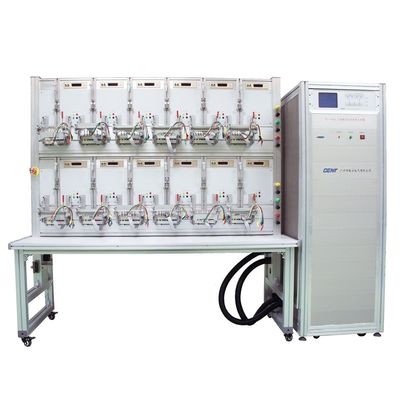

Three-Phase Intelligent Electricity Meter Calibration Device Stationary Meter Test System

Name: Three-Phase Intelligent Electricity Meter Calibration Device Stationary Meter Test System
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC-1893G
Availability: InStock

Brand Name:	GENY
Model Number:	YC-1893G
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Structure:

All-in-one

Usage:

Energy Meter Calibration, Lab Research

Ambient Temperature:

-10℃ To +40℃

Power Supply:

Three-phase Four-wire 3×220V/380V±15%, 50/60Hz±2Hz

Ambient Humidity:

35% To 85% R.H.

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Stationary Meter Test System

Intelligent Electricity Meter Calibration Device

Three-Phase Stationary Meter Test System

Product Description

Three-Phase Intelligent Electricity Meter Calibration Device Stationary Meter Test System

The YC-1893G three-phase intelligent electricity meter calibration device is designed and manufactured in accordance with the requirements of the State Grid (Southern Grid) intelligent electricity meter series standards, and it fully takes into account the characteristics of different users such as power supply, metering systems, and electricity meter manufacturers, fully capable of meeting their calibration needs.

Product Details:

Main Technical Specifications	Description
Power Supply	Three-phase four-wire 3×220V/380V±15%, 50/60Hz±2Hz
Ambient Temperature	-10℃ to +40℃
Ambient Humidity	35% to 85% R.H.
Output Voltage Range	3×0~480V
Output Voltage Power	>10VA (per meter position/phase)
Voltage Resolution	≤0.01%
Voltage Stability	≤0.02%/120s
Load Change Rate	≤0.01%
Voltage Distortion	≤0.3% (full linear load range)
Output Current Range	3×0~120A
Output Current Power	>15VA (per meter position/phase)
Current Resolution	≤0.01%
Current Stability	≤0.02%/120s
Current Distortion	≤0.3% (full linear load range)
Phase Adjustment Range	0~360°
Phase Resolution	0.01°
Frequency Adjustment Range	45~65Hz
Frequency Resolution	0.01Hz
Output Power Stability	≤0.02%/120s
Error Display	Signal Reading: Read from electronic pulse signal end or LED optical signal end<br>Display Method: LED digital display
Communication Protocol	Fully complies with the regulations of DL/T645-2007 and its two filing documents DL/T645-2009-001/002.

Functions:

Starting and creeping performance test
Forward and reverse active power and energy error test
Four-quadrant reactive power and energy error test
Energy error test under balanced and unbalanced loads
Meter reading error test
Meter combination error test
Verification of calibration constant
RS485 communication test
Daily timing error test
Time slot switching error test
Demand reading error test
Demand cycle error test
Error consistency test
Load current step change test

Special Features:

Combined active and reactive power mode test
Tariff time period energy reading error test
Remaining energy decrement accuracy test
Local and remote fee control function test
Tiered electricity price switching function test
Built-in and external load switch performance test
Current overload performance test
Short-term overvoltage performance test
Time-segment maximum demand test
Infrared and carrier communication test (optional)
Power consumption test (optional)
Voltage, frequency, harmonics, and other influencing factor tests
