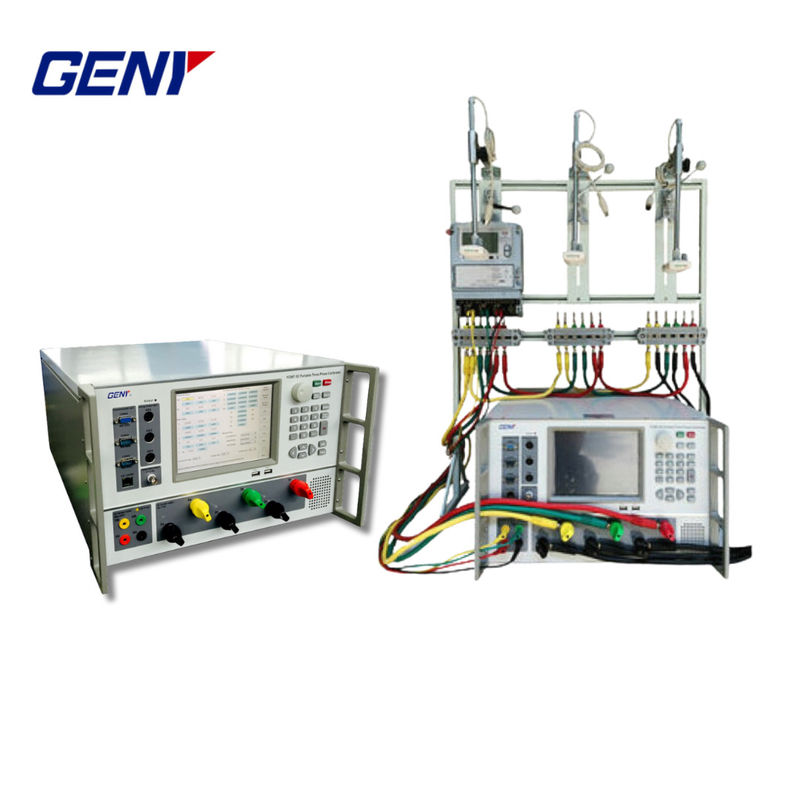

| Brand Name: | GENY |
| Model Number: | YC99T-3C/5C |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T, L/C, D/P, T/T |
| Supply Ability: | 5 sets / 1 months |
| Model No. | YC99T-3C |
| Meter Position / Accuracy | 3 / 0.05 |
| AC Voltage output | |
| Range | 57.7V,100V, 220V, 380V,660 |
| Adjustment Range | (0-120)%RG (RG is Range) |
| Adjust Resolution | 0.01%RG, 0.1%RG, 1%RG, 10%RG |
| Stability | 0.01%/2min (0.05cl), 0.02%/2mim(0.1cl) |
| Distortion | ≤0.2% (Non capacitive load) |
| Max Output load | 20VA/phase |
| Measurement Accuracy | ±0.05%RG(0.05cl), ±0.1%RG(0.1cl) |
| AC Current output | |
| Range | 0.05A,0.2A,1A,5A,16.67A,50A |
| Adjust Range | (0-120)%RG (RG is Range) |
| Adjust Resolution | 0.01%RG, 0.1%RG, 1%RG, 10%RG |
| Stability | 0.01%/2min (0.05cl), 0.02%/2mim(0.1cl) |
| Distortion | ≤0.2% (Non capacitive load) |
| Max Output load | 50VA(50A range) |
| Measurement Accuracy | ±0.05%RG(0.05cl), ±0.1%RG(0.1cl) |
| Power output | |
| Stability | 0.01%/2min(0.05cl), 0.02%/2min(0.1cl) |
| Active, Reactive power accuracy | ±0.05%RG |
| Phase output | |
| Output adjusting range | 0 ~ 359.99° |
| Output adjusting power | 10°,1°,0.1°,0.01°optional |
| Resolution | 0.01. |
| Measurement accuracy | ±0.05. |
| Power factor output | |
| Adjusting range | -1~0~+1 |
| Measuring resolution | 0.0001 |
| Measurement accuracy | ±0.0005 |
| Frequency output | |
| Adjusting range | 40Hz – 70Hz |
| Output adjusting resolution | 1Hz, 0.1Hz, 0.01Hz, 0.001Hz optional |
| Resolution | 0.001Hz |
| Accuracy | ±0.002Hz |
| Harmonic setting | |
| Harmonic order | 2nd~63rd |
| Harmonic amplitude | 0~40% |
| Harmonic angle | 0 °~359.00° |
| Harmonic set error | 2nd ~ 31st :≤±0.1%, 32nd~63rd : ≤±0.2% |
| Energy error measurement | |
| Active energy basic error limit | ±0.05%RD(voltage30V~660V,current0.02A~60A,PF≥0.5) |
| Reactive energy basic error limit | ±0.1%RD(voltage30V~660V,current0.02A~60A,PF≥0.5) |
| Standard crystal | |
| Frequency accuracy | ±0.5ppm (leave factory@25℃) |
| Frequency stability | ±0.1ppm,-20℃~+70℃ |
| Energy pulse input | |
| Number of energy pulse input | 3 channels active, 3 channels reactive |
| General parameters | |
| Power supply | AC220V±15% or 110V±15% |
| Frequency | 50Hz~60Hz |
| Consumption | 60VA~1000VA |
| Environment condition | 20℃ ~ 30℃,relative humidity≤85% |
| Storage environment | -20℃~50℃ |
| Size & Weight | 600mm(L)X400mm(W) X266mm(H), 30kg |
| Model No. | YC99T-5C |
| Meter Position / Accuracy | 3 / 0.05cl |
| AC Voltage output | |
| Range | 57.7V,100V, 220V, 380V |
| Adjustment Range | (0-120)%RG (RG is Range) |
| Adjust Resolution | 0.01%RG, 0.1%RG, 1%RG, 10%RG |
| Stability | 0.01%/2min (0.05cl), 0.02%/2mim(0.1cl) |
| Distortion | ≤0.2% (resistance load) |
| Max Output load | 20VA/phase |
| Measurement Accuracy | ±0.05%RG(0.05cl), ±0.1%RG(0.1cl) |
| AC Current output | |
| Range | 0.05A,0.2A,1A,5A,20A,100A |
| Adjust Range | (0-120)%RG (RG is Range) |
| Adjust Resolution | 0.01%RG, 0.1%RG, 1%RG, 10%RG(optional) |
| Stability | 0.01%/2min (0.05cl), 0.02%/2mim(0.1cl) |
| Distortion | ≤0.2% (Non capacitive load) |
| Max Output load | 100VA(100A range) |
| Measurement Accuracy | ±0.05%RG(0.05cl), ±0.1%RG(0.1cl) |
| Power output | |
| Stability | 0.01%/2min(0.05cl), 0.02%/2min(0.1cl) |
| Active, Reactive power accuracy | ±0.05%RG |
| Phase output | |
| Output adjusting range | 0 ~ 359.99° |
| Output adjusting power | 10°,1°,0.1°,0.01°optional |
| Resolution | 0.01. |
| Measurement accuracy | ±0.05. |
| Power factor output | |
| Adjusting range | -1~0~+1 |
| Measuring resolution | 0.0001 |
| Measurement accuracy | ±0.0005 |
| Frequency output | |
| Adjusting range | 45Hz – 70Hz |
| Output adjusting resolution | 1Hz, 0.1Hz, 0.01Hz, 0.001Hz |
| Resolution | 0.001Hz |
| Accuracy | ±0.002Hz |
| Harmonic setting | |
| Harmonic order | 2nd~63rd |
| Harmonic amplitude | 0~40% |
| Harmonic angle | 0 °~359.99° |
| Harmonic set error | 2nd ~ 31st :≤±0.1%, 32nd~63rd : ≤±0.2% |
| Energy error measurement | |
| Active energy basic error limit | ±0.05%RD(voltage30V~380V,current0.02A~120A,PF≥0.5) |
| Reactive energy basic error limit | ±0.1%RD(voltage30V~380V,current0.02A~120A,PF≥0.5) |
| Standard crystal | |
| Frequency accuracy | ±0.5ppm (leave factory@25℃) |
| Frequency stability | ±0.1ppm,-20℃~+70℃ |
| Energy pulse input | |
| Number of energy pulse input | 3 channels active, 3 channels reactive |
| General parameters | |
| Power supply | AC220V±15% or 110V%15% |
| Frequency | 50Hz~60Hz |
| Consumption | 60VA~1000VA |
| Environment condition | 20℃ ~ 30℃,relative humidity≤85% |
| Storage environment | -20℃~50℃ |
| Size & Weight | 600mm(L)X400mm(W) X266mm(H), 48kg |
