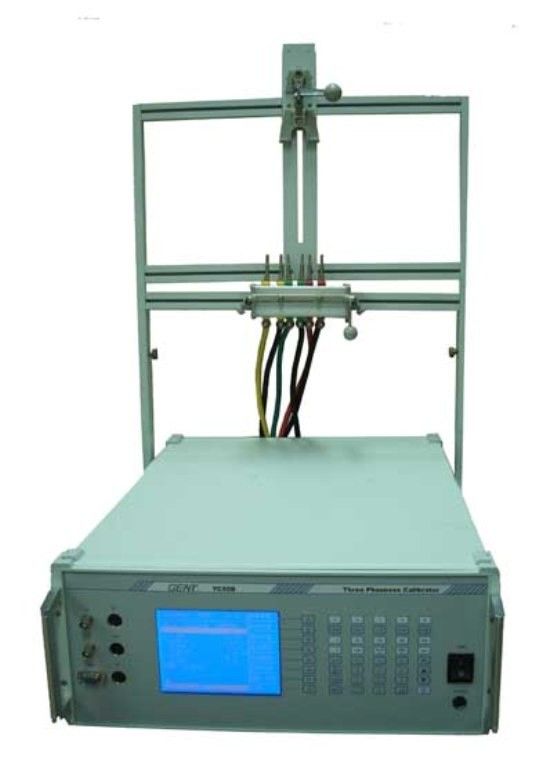

GENY Portable Energy Meter Test Equipment YC99B Energy Meter Calibration On Field

Name: GENY Portable Energy Meter Test Equipment YC99B Energy Meter Calibration On Field
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99B
Availability: InStock

Brand Name:	GENY
Model Number:	YC99B
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Test Voltage Output (Phase-Neutral:

3* (0V – 450V)

Phase Range:

0 -- 360°

Frequency:

40Hz – 70Hz

Voltage Supply:

220V±10% 50/60Hz±2Hz

Dimensions (W×H×D) (mm):

445×180×680

Relative Humidity:

35% -- 85%

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

geny portable energy meter test equipment

yc99b energy meter calibration

portable energy meter test equipment yc99b

Product Description

Three Phase Energy Meter Portable Meter Test Equipment for Energy Meter Calibration on Field with High Precision

Specifications:

Voltage
Test voltage output (Phase-Neutral)	3* (0V – 450V)
Power of the voltage output	Max. 3*30A
Resolution	0.01%
Accuracy	0.1%
Stability	0.02%/120s
Distortion factor	< 0.3% for linear resistance load
Current
Test current output	3*(1mA – 120A)
Power of the current output	Max. 3*100VA
Resolution	0.01%
Accuracy	0.1%
Stability	0.02%/120s
Distortion factor	< 0.3% for linear resistance load
Phase angle
Range	0 -- 360°
Resolution	0.1°
Accuracy	0.2°
Frequency
Range	40Hz – 70Hz
Resolution	0.005Hz
Pulse output
High frequency output(CH)	1.666×105 Hz
Low frequency output(CL)	5×10-5×CH
Pulse input
Input channel	3
Input frequency	Max. 20Hz
Other
Voltage Supply	220V±10% 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%
Dimensions (W×H×D) (mm)	445×180×680
Weight (kg)	40

Description:

YC99B is a highly versatile portable three-phase calibrator designed to meet calibration needs in both laboratory and field environments. Its adaptability makes it suitable for a wide range of applications. Here are some key features:

Meter Compatibility: YC99B is compatible with a variety of meters, including 3P4W, 3P3W, and 1P2W configurations, ensuring its utility across different setups.

Testing Modes: This calibrator offers testing capabilities for both active and reactive power, providing comprehensive assessment options.

Multi-Meter Testing: It enables synchronous testing of three individual I-P open link meters or simultaneous testing of a single I-P closed links meter, optimizing efficiency and flexibility in testing setups.

Test Functions: YC99B supports starting tests and creeping tests, essential for accurate and thorough meter evaluation.

Harmonic Output (Optional): With optional harmonic output functionality, this calibrator expands its capabilities to include harmonic distortion testing, meeting more advanced testing requirements.

Computer Connectivity: Test data generated by YC99B can be seamlessly managed and analyzed on a computer via the RS232 interface, facilitating easy data transfer and enhancing workflow efficiency.

Overall, YC99B stands out as a reliable and adaptable solution for precision calibration needs, offering a comprehensive set of features to meet diverse testing requirements in the field or laboratory settings.

Applications:

7. Nation-level utility companies

8. Governmental bureaus of metrology

9. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. Convenient operation

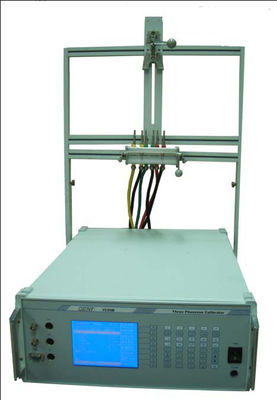

GENY Portable Energy Meter Test Equipment YC99B Energy Meter Calibration On Field 0
