3ph Energy Meter Calibration Equipment YC1893D Energy Meter Accuracy Test

3ph Energy Meter Calibration Equipment YC1893D Energy Meter Accuracy Test

Brand Name: GENY
Model Number: YC1893D
Payment Terms: L/C, T/T, D/P
Supply Ability: 100/Year
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Model NO.:
YC1893D
After-sales Service:
3 Year
Warranty:
1 Year
Application:
Electromagnetic Instrument
Power:
Electricity
Voltage Output:
3X(24V-300V)(or Customized)
Current Output:
3X(1mA-120A/200A)
Thermocouple (TC):
No
Resistance-Temperature Detector (RTD):
No
LCD Display:
With LCD Display
Customized:
Customized
Trademark:
GENY
Transport Package:
Plywood Case
Specification:
12.4CBM
Origin:
China
HS Code:
9030849000
Port:
Guangzhou, China
Supply Ability:
100/Year
Highlight:

3ph energy meter calibration equipment

,

yc1893d energy meter accuracy test

,

energy meter calibration equipment yc1893d

Product Description

Grade Three Phase Meter Test Bench for Accurate Energy Meter Calibration and Testing

Product Description

Features& Functions


  • Meters under testing:3P4W,3P3W
  • Testing mode:active power,reactive power,cross connected reactive power
  • Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P Links) (optional)
  • Neutral current test (optional)
  • Installing RS232, Ethernet communication port in each meter position,to reality the automati calibrate of electronic meter(optional)
  • The meter test systems can measure mechanical meters, electronic mechanical meters and electronic meters by the way of automatic, semi-automatic or manual operation.
  • Aluminum alloy material,light and strong and corrosion resistant.
  • Automatic positioning rotor mark of disc of mechanical meters,with more efficiency.
  • The swing together of the scanning heads simplifies the control.
  • Starting test and creeping test.
  • Measuring different constants of meters synchronously.
  • With the protection function of overload, short voltage circuit and open current circuit. The testing software with friendly Window 10 and XP operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test,demand test, influence test etc.The stored testing data can be transferred to multi-format for other program use.
  • The whole system is accredited to conforms to EU health and safety standards with CE certificates



Product Parameters


Application Conditions and Requirements
Environment Power Requirement Safety
Operation Humidity Altitude Voltage Supply IP Class Conformity
Temperature
-10ºC--+40ºC 0.5 <2500m 3x220/380V±10%(or customized) IP30 CE conform
50/60Hz±2Hz

Type YC1893D-6 YC1893D-12 YC1893D-24 YC1893D-48
Number of meter positions 6 12 24 48
Accuracy 0.05
Power Source YCS-103-250 YCS-103-600 YCS-103-1200 YCS-103-2500
Reference Standard Meter SZ-03A-K8
Scanning Head YCG-2-series
Voltage
Test voltage output(Phase-Neutral) 3x(24V-300V)(or customized)
Power of the voltage output Max.3x100VA Max.3x250VA Max.3x500VA Max.3x1000VA
Resolution Better than 0.01%of full scale value of range
Setting accuracy Better than 0.05%at the final range value
Stability Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load Better than 0.01%
Distortion factor Better than 0.3% for linear resistance load
Harmonics 2nd-41st free programmable
Current
Test current output 3x(1mA-120A/200A)
Power of the current output Max.3x250VA Max.3x500VA Max.3x1000VA Max.3x2000VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load Better than 0.01%
Distortion factor Better than 0.3% for linear resistance load
Harmonics 2nd-41st free programmable
Phase angle
Range 0-360°
Resolution 0.01°
Setting accuracy 0.1°
Frequency
Range 45Hz-65Hz
Resolution 0.01Hz
Error display
Type of error display Red LED
Resolution of the error displays 8 digits



Our main products of electrical measuring equipment

  • Single/Three Phase Electric Energy Meter Test Bench
  • Single/Three Phase Portable Standard Meter
  • Single/Three Phase standard meter
  • Single/Three Phase Power Source
  • Single/Three Phase Portable Power Source etc.

Our customers


In the domestic market of electric measurement products, our marketing occupation share is around 30%. Many state-owned large-sized utilities and power-supply bureaus are our constant clients. It is due to the excellent quality of our products and the good after-sales service that we offer.
During the past years, we have made great efforts in exploring the overseas market, which yielded fruitful results. Today our products reached many places in the world(over 30 countries)and our important customers include Actaris, Landis&Gyr, EATON, Schlumberger, Secure Meters, EMCO, NAMJUN, LEMZ, etc.

Our Advantages
  1. We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.
  2. All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.
  3. We have a consummate marketing network and we offer a competitive price.
  4. Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.

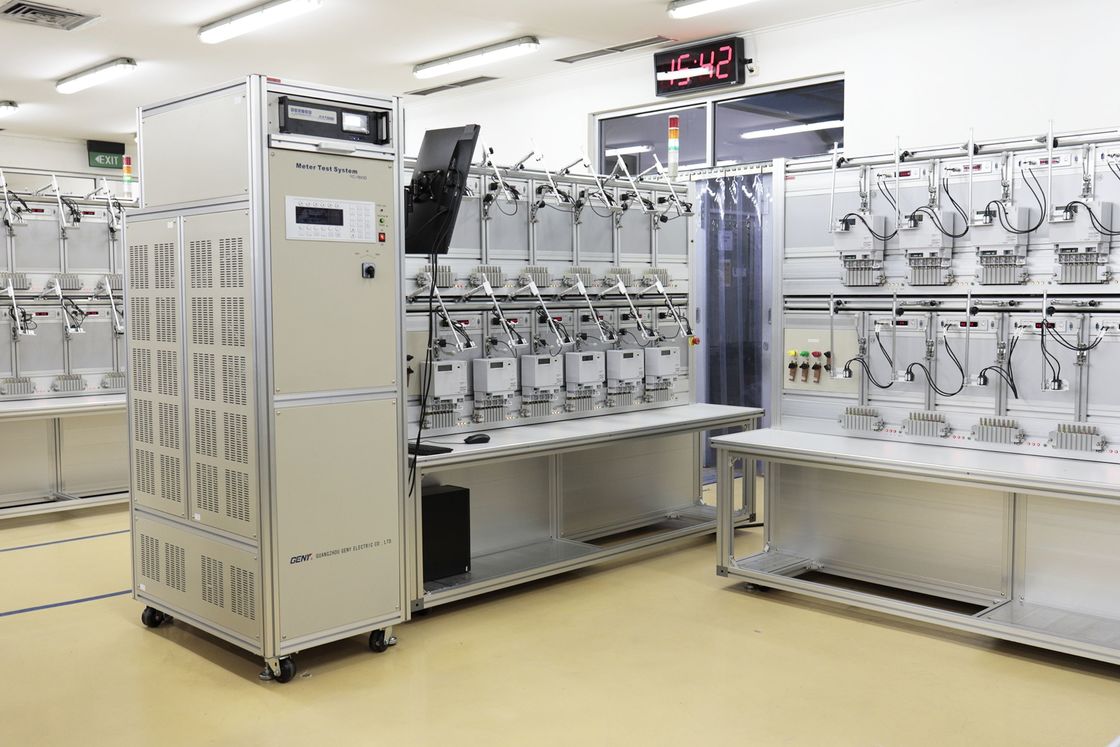

 3ph Energy Meter Calibration Equipment YC1893D Energy Meter Accuracy Test 0
