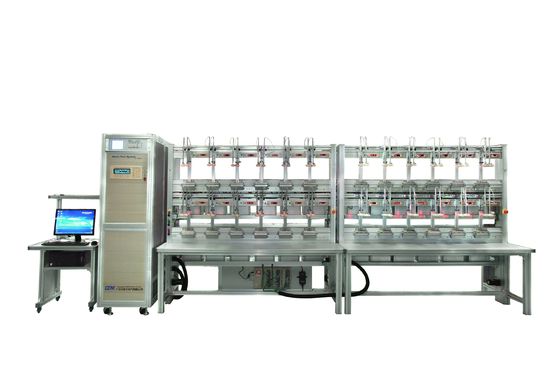

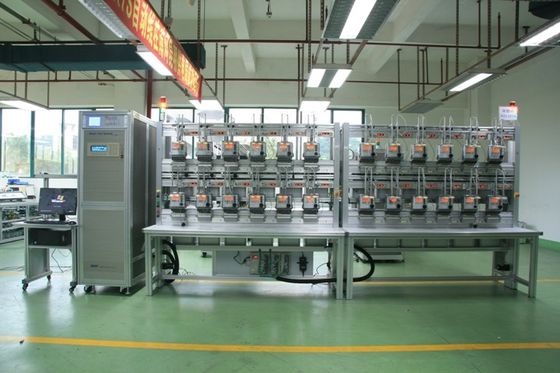

1. The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.

2. Meters under testing: 3P4W, 3P3W, 1P2W

3. Testing mode: active power, reactive power, cross connected reactive power

4. Simultaneously measure meters with same specifications but different meter constants

5. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.

6. Starting test and creeping test

7. Neutral current test (optional)

8. Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits(I-P links)(optional)

9. With the protection function of overload, short voltage circuit and open current circuit.

10. The swing together of the scanning heads simplifies the control.

11. Aluminum alloy material, light and strong and corrosion resistant

12. The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. Over 18 months long warranty

3. High accuracy class: 0.05/0.02

4. Can be customized of Three Phase Electric Energy Meter Test bench

5. Extremely high power stability

6. Neutral current test(optional)

7. Timing error test

8. Influence test of voltage, frequency, and harmonic

9. Installing RS232, Ethernet communication port in each meter position.

10. Tilt impact test (optional)
