6-In-1 DC Energy Meter Testing Equipment Testing Of Single Phase Energy Meter

6-In-1 DC Energy Meter Testing Equipment Testing Of Single Phase Energy Meter

Brand Name:	GENY
Model Number:	YC1891F
MOQ:	1
Price:	negotiate rates
Payment Terms:	L/C, D/P, T/T, D/A
Supply Ability:	2 sets/ 3 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Appearance:

LED Light

Current Output Range:

0~600A DC Current

Voltage Output:

0V - 10kV

Standard:

IEC 60736

Usage:

Energy Meter Calibration, Lab Research

Support:

Ripple Test

Storage Temperature:

-20-70°C

Outer Casing:

Aluminum Alloy

Frequency Range:

45-65Hz

Test Object:

Ring Main Unit (RMU)

Output Power:

1000VAC

Ac Frequency Range:

0.001-5KHz

Accuracy:

0.05%

Output Range:

0～250A-AC

Packaging Details:

Plywood cases

Supply Ability:

2 sets/ 3 months

Highlight:

DC Energy Meter Testing Equipment

Testing Of Single Phase Energy Meter

Product Description

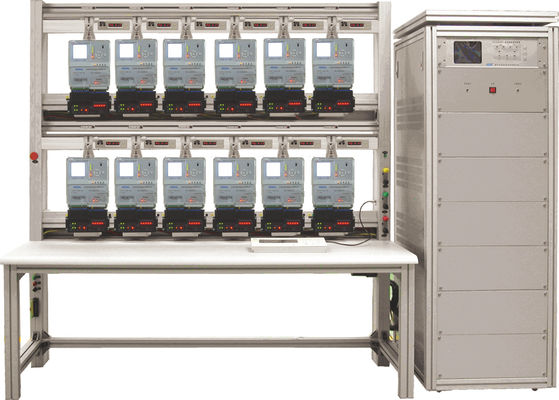

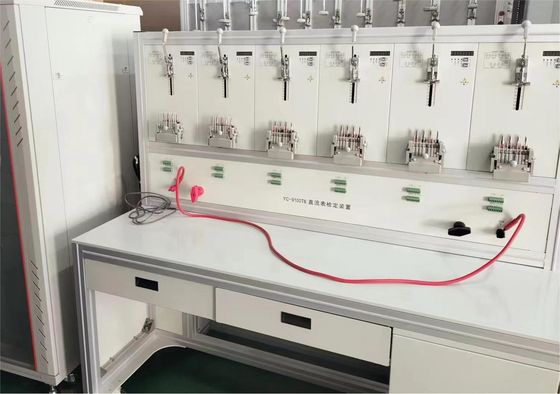

6-In-1 DC Energy Meter Testing Equipment For Testing Of DC Energy Meter

Product description

The YC-9600T6/9100T6/YC-2015Z DC energy meter test instrument is a DC energy meter test instrument that meets the requirements of GB/T 33708-2017, Q/GWD1826-2013, and Q/GDW 1825-2013. It has the following features:

It has 6 meter under test positions and can simultaneously test 6 meters of electric energy meters (0~100A) or 3 meters of electric energy meters (0~600A).
It can output DC voltage, DC current, and small signal, and realize the addition output of electric energy meter test.
It has a voltage accuracy of 0.02% grade, a current accuracy of 0.02% grade, and an energy accuracy of 0.05%.
It has a voltage and current output stability of ±(0.01%*RD+0.005%RG)/min, a current stability of ±(0.01%*RD+0.005%RG)/min, and a year drift of less than 100ppm/year.
It has a voltage and current ripple output capability of 0~500Hz, a pulse coefficient that allows output greater than 30% of the pulse, a ripple phase of less than 0.1 degree, and a ripple accuracy of 5%.
It has a working power of AC 220V ±5% 50Hz, a relative humidity of ≤85%, and no corrosive gas.
It has a size of 600mm×600mm×1610mm (width×depth×height) and 1552mm×540mm×1505mm (length×width×height).

Technical parameters

The technical data of YC-9600T6/9100T6/YC-2015Z DC energy meter test instrument are as follows:

Voltage accuracy: 0.02% grade
Current accuracy: 0.02% grade
Energy accuracy: 0.05%
Voltage and current output stability: ±(0.01%*RD+0.005%RG)/min
Current stability: ±(0.01%*RD+0.005%RG)/min
Year drift: less than 100ppm/year
Voltage and current ripple output capability: Ripple frequency: 0~500Hz Pulse coefficient: allows output greater than 30% of the pulse Ripple phase: The phase error of voltage and current ripple is less than 0.1 degree Ripple accuracy: 5%
Other indicators: Working power: AC 220V ±5% 50Hz Relative humidity: ≤85% No corrosive gas
Size: Cabinet: 600mm×600mm×1610mm (width×depth×height) Table: 1552mm×540mm×1505mm (length×width×height)

DC engery test bench
Meter under positions	1~ 6
six-way dc voltage output
Quantity limit	0 ~ 1000V (MAX :1150V )
gear	60V ,500V ,1000V
accuracy	0.02% class
maximumoutput	30W
One-way DC current output
Quantity limit	600A
gear	1mA ,5mA ,20 mA ,50 mA ,200 mA ,1 A ,5 A , 10 A , 20 A ,60 A ,100 A ,500 A
accuracy	0.02% class
capability	port voltage is greater than 3V
six-way indirect current output
Quantity limit	0~5V
gear	Supports 2 .5mV, 20 mV, 100 mV (75 mV rated), 1V, 5V, and five gears
accuracy	2.5 mV range: ± (0 .05% * RD + 7 μ V)
	20 mV range: ± (0 .02% * RD + 10 μ V);
	100 mV range: ± (0 .02% * RD + 10 μ V);
	100mV … 5V range: ± (0 .02% * RD + 10 μ V)
capability	Output of the U <= 100mV is 1mA;
capability	100mv <u <= 5V with the output 10mA
Electric energyaccuracy

Electric energyaccuracy	0.05%
voltage and current output stability
voltage stability	±(0 . 01% * RD +0 .005%RG ) /min
current stability	±(0 . 01% * RD +0 .005%RG ) /min
year drift	Less than 100ppm / year
voltage andcurrent ripple output capacity
ripple frequency	0 ~ 500 Hz
pulse coefficient	per low output greater than30%
ripple phase	The voltage and current ripple phase error is less than 0.1 degrees
ripple accuracy	5%
other indicators
working power supply	AC 220V ±5% 50Hz
relative humidity	85%
