Portable Energy Meter Test Bench

Name: Portable Energy Meter Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Model:

YC99T

Accuracy Class:

0.05%

Max Voltage:

456V (P-N)

Max Current:

120A

Test Current Output:

3*（1mA-120A)

Test Voltage Output:

3*（0V-450V）

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

Portable Energy Meter Test Bench

portable energy meter calibration

three phase energy meter calibration

Product Description

User-Friendly High-Performance Three Phase Portable Meter Test System For Energy Meter Testing

Description

It is used in the measurement testing center of the grid companies, measurement department of power supply companies and power plants,

national measurement testing institutions and metrology inspection departments, measurement testing departments of medium-sized

enterprises, such as railway and petrochemical. Also, it can be used by the manufacturers of energy meters, includes its production,

research and development, testing departments, as well as in universities and related research institutions, specialized laboratories.

Main functions

It can test various single and three phase electronic and mechanical meters
It can automatically or manually test 1ph or 3ph meters': basic error, creeping teststarting test, standard deviation and etc, the testing plan can be fixed by customers,.
It can execute the influence test includes: voltage influence, frequency influenceharmonic influence, reverse phase sequence influence,unbalance voltage influencetest;
Support DLT-645 communication protocol, and can execute some tests formulti-functions energy meters;
More output terminals for more operations: RS232, RS485, extend l/0, EthernetUSB, wifi and etc.;
Output 2~63 harmonics
8 inch touchscreen and friendly operation system,
It can test 3 pcs meters max.

Technical Parameters

	GENY YC99T-5C	GENY YC99T-3C
General
Power supply	220V±15% or 110V±15%	220V±15% or 110V±15%
Power consumption	60VA～1600VA	50VA～1000VA
Temperature range, operation	20℃～30℃,	20℃～30℃,
Temperature range, storage	-20℃～50℃	-20℃～50℃
Relative humidity (not condensing)	≤85%	≤85%
Dimensions (DxWxH)	600mm× 440mm× 264mm	600mm× 440mm× 176mm
Weight	45kg	28kg
Safety
IP class according to DIN EN 60529
Declaration of conformity
Protection class according to DIN EN 61140
Source
Voltage min. max.	0-456V(Phase to neutral)	0-792V(Phase to neutral)
Voltage range(s)	57.7V,100V,220V,380V	57.7V,100V,220V,380V,660V
Voltage max. output power	20VA per phase	20VA per phase
Voltage distortion	≤0.2%(None capacity load)	≤0.2%(None capacity load)
Voltage resolution	0.01% of range	0.01% of range
Voltage accuracy	0.05% of range	0.05% of range
Voltage stability	0.01%/2min	0.01%/2min
Voltage load dependence	Capacity/Inductance/Resistance
Current min. max.	0-120A	0-60A
Current range(s)	50mA,200mA,1A,5A,20A,100A	50mA,200mA,1A,5A,16.67A,50A
Current max. voltage per range	1V at 100A	1V at 60A
Current max. output power	120VA	60VA
Current distortion	≤0.2%(None capacity load)	≤0.2%(None capacity load)
Current setting resolution	0.01% of range	0.01% of range
Current accuracy	0.05% of range	0.05% of range
Current stability	0.01%/2min	0.01%/2min
Current long term stability	0.05% of range	0.05% of range
Current load dependence	Resistance	Resistance
Frequency range	40Hz ～70Hz	40Hz ～70Hz
Frequency accuracy	0.002 Hz	0.002 Hz
Frequency setting accuracy	0.001Hz	0.001Hz
Phase angle setting range	0～360°	0～360°
Phase angle setting resolution	0.01°	0.01°
Phase angle accuracy	0.05°	0.05°
Phase angle stability	0.05°	0.05°

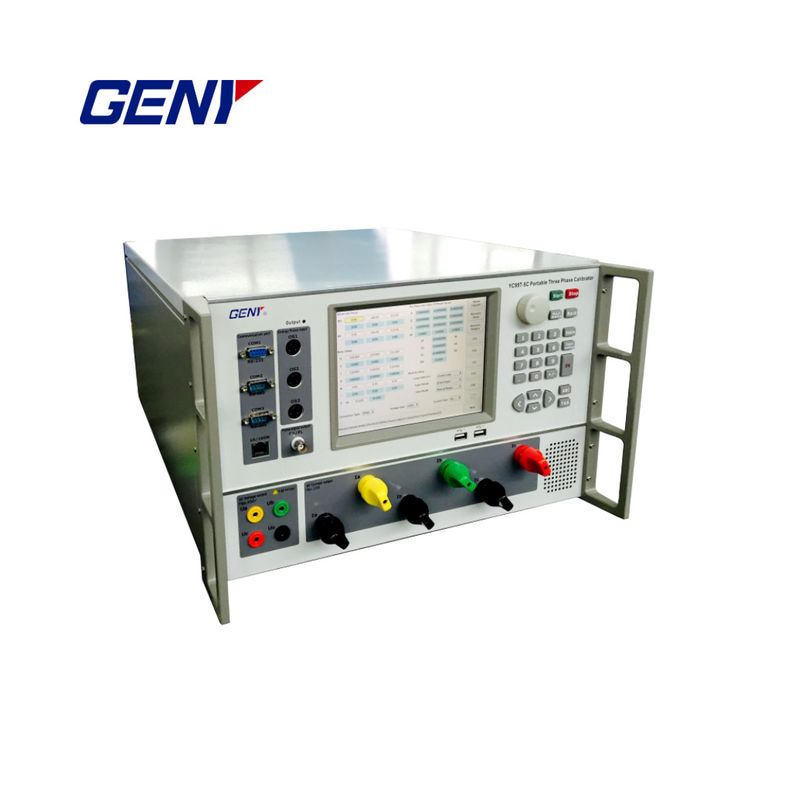

Portable Energy Meter Test Bench 0

Portable Energy Meter Test Bench 1

Portable Energy Meter Test Bench 2

*If you want to know more please check our official website:http://www.genymetertestequipment.com/
