Automatic Electrical Tester Calibration

Automatic Electrical Tester Calibration

Brand Name: GENY
Model Number: YC-1891D
MOQ: 1
Price: negotiate rates
Payment Terms: D/A,D/P,T/T,L/C
Supply Ability: 10 pcs/ 3 months
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Type:
YC1891D
Certification:
ISO, CE
Accuracy Class:
0.05% / 0.02%
Max Voltage:
480V (P-N)
Max Current:
200A
Frequency:
40Hz ~ 70Hz
HS Code:
9030849000
Usage:
Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Packaging Details:
Plywood cases
Supply Ability:
10 pcs/ 3 months
Highlight:

Automatic Meter Test Equipment

,

Automatic Electrical Tester Calibration

Product Description

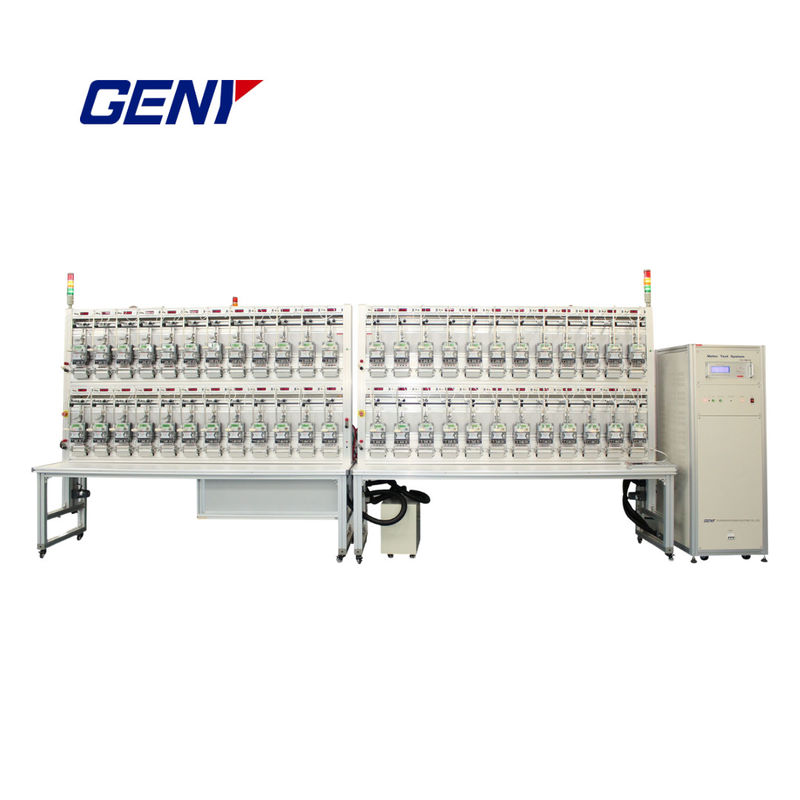

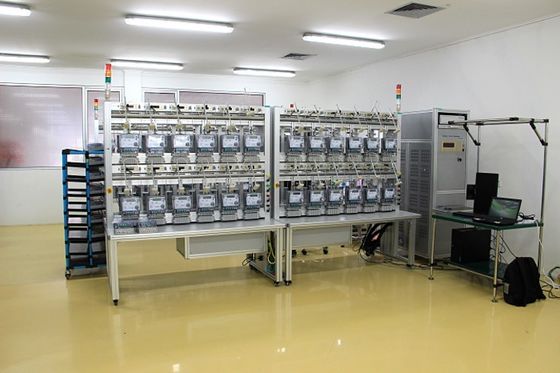

Automatic Electrical Tester Calibration


Universal Fully Automatic Stationary Three Phase Meter Test Equipment for Calibration of Electronic Energy Meter


Features& Functions

  1.       Meters under testing: 1P2W
  2. Testing mode: active power, reactive power, cross connected reactive power
  3. With current output switch, can calibrate 2 element meter
  4. With MSVT, can test single-phase meters with closed links between the current and voltage measuring circuits (I-P links)
  5. Simultaneously measure meters with same specifications but different meter constants
  6. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.
  7. The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.
  8. With the protection function of overload, short voltage circuit and open current circuit.
  9. The swing together of the scanning heads simplifies the control.
  10. Starting test and creeping test
  11. Aluminum alloy material, light and strong and corrosion resistant
  12. The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

Technical Parameters



YC1891D-6

YC1891D-12

YC1891D-24

YC1891D-48

Number of meter positions

6

12

24

48

Accuracy

0.05

Power Source

YCS-101-250

YCS-101-600

YCS-101-1200

YCS-101-2500

Standard Meter

SZ01A-K3

MSVT

HJ200GL-6

HJ200GL-12

HJ200GL-24

HJ200GL-48

QCD

D5 series

Scanning Head

YCG-2 series

Voltage

Test voltage output

24V – 288V or customized

Power of the voltage output

100VA

250VA

500VA

1000VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Current

Test current output

1mA – 100A  or customized,Max.200A

1mA – 100A

Power of the current output

150VA

350VA

750VA

1500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Phase angle

Range

0 -- 360°

Resolution

0.01°

Setting accuracy

0.1°

Frequency

Range

45Hz – 65Hz

Resolution

0.01Hz

Error display

Type of error display

Red LED

Resolution of the error displays

8 digits



Voltage Supply

220V±10% or customized

50/60Hz±2Hz

3x220/380V±10% or customized

50/60Hz±2Hz

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%
