High-Precision Three-Phase Energy Meter Test System with ICT

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Test Voltage Output(Phase-Neutral):

3x(24V~288V)(or Customized)

Harmonic:

2nd~21st Free Programmable

Frequency Range:

45Hz~65Hz

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Packaging Details:

plywood case

Supply Ability:

30 PCS per month

Highlight:

Product Description

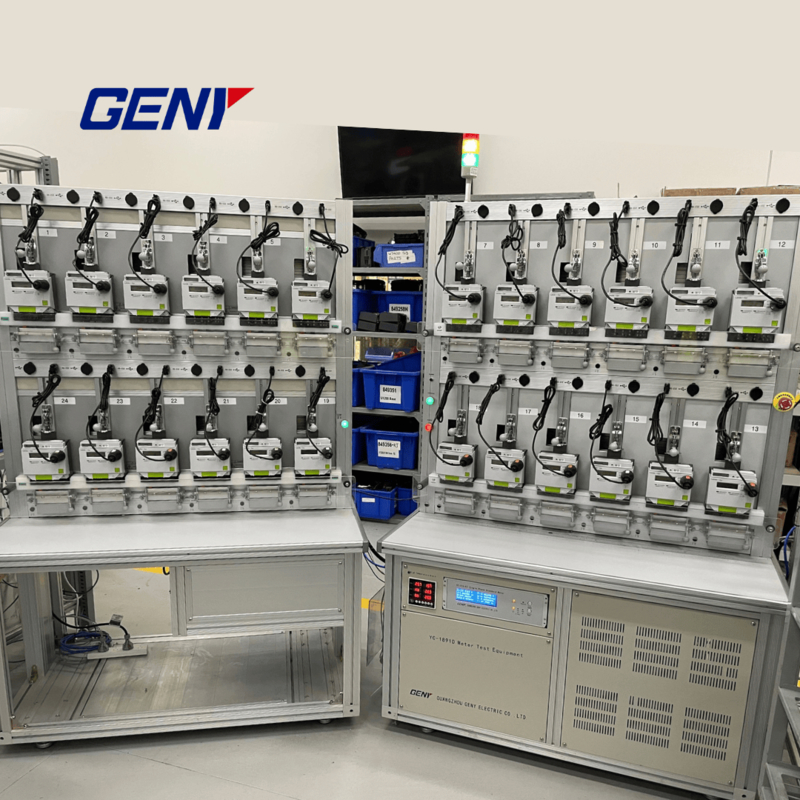

High-Precision Three-Phase Energy Meter Test System with ICT

Key Attributes

Attribute	Value
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Harmonic	2nd~21st free programmable
Frequency Range	45Hz~65Hz
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz

Product Features

Per-position ICT - test meters with sealed I-P links intact, cutting re-seal costs
One station handles mechanical, electro-mechanical, electronic meters; auto/semi/manual modes reduce labour
3P4W, 3P3W, 1P2W ready for any grid standard
Active, reactive, cross-phase tests; parallel run of mixed meter constants slashes batch time
Auto disc-mark capture, built-in start & creep tests
Full overload, short-V, open-I protection; corrosion-resistant light alloy frame thrives in hot, humid climates
Windows software covers error, harmonics, demand, influence tests
Class 0.05 accuracy, 18-month warranty - proven ROI for utilities, metrology labs and manufacturers

Technical Specifications

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
