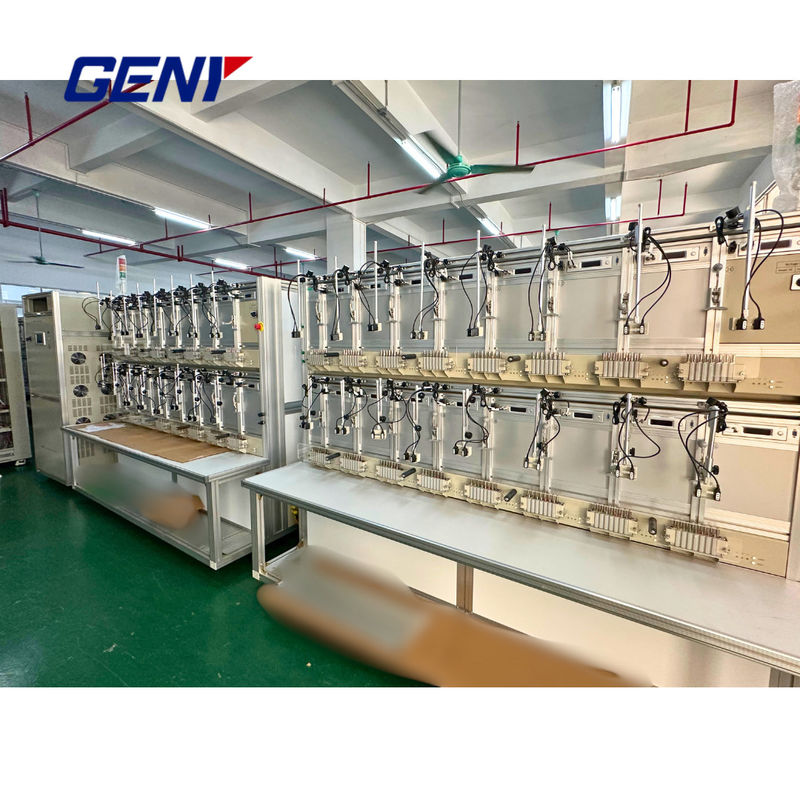

Multi-Positions Single Phase Meter Test Bench

Multi-Positions Single Phase Meter Test Bench

Technical Data

Description:

1. The meter test system is capable of measuring mechanical and electronic meters, as well as electronic meters, through automatic, semi-automatic or manual operation.
2.Meters under testing: 1P2W
Thirdly, the testing mode encompasses the following: active power, reactive power and cross-connected reactive power.
4. MSVT allows for the testing of single-phase meters with closed links between the current and voltage measuring circuits (I-P links).
5. With the current output switch, it is possible to calibrate a two-element meter (this is optional).
Sixthly, the meters should be measured in parallel, with the same specifications but different meter constants.
7. The automatic positioning rotor mark of the disc of the mechanical meter is more efficient.
8. Initiating the test and the creep test.
9. The product incorporates a range of safety features, including overload, short-voltage and open-current circuit protection.
10. The synchronised movement of the scanning heads streamlines the control process.
11. The aluminium alloy is a lightweight yet durable and corrosion-resistant material.
12. The testing software, compatible with Windows 2000, XP, 7, 8 and 10, includes a range of functional modules for various modern energy meters. These modules facilitate a variety of tests, including real-time error, harmonic, demand and influence tests, among others.

Applications:

1. Utility companies operating at a national level
2. Governmental bureaus of metrology
Thirdly, let us turn our attention to the major players in the energy meter manufacturing industry.

Primary Competitive Advantages:

1. Product of the highest quality.
2.The product is protected by a warranty that covers a period of 18 months.
3. High-accuracy class: Please note that the figure is 0.05.
4.The test bench is designed for the evaluation of single-phase electric energy meters with a range of 4.3 to 48.
5. The product demonstrates extremely high power stability.
6: Neutral current test (optional)
7. Test for timing errors
8.The next stage of the process is to conduct an influence test on voltage, frequency, and harmonic.
9. The RS232 and Ethernet communication ports should be installed in each meter position.
10.Please note that the tilt impact test is optional.
