| Brand Name: | GENY |
| Model Number: | YC1893D |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 100/Year |

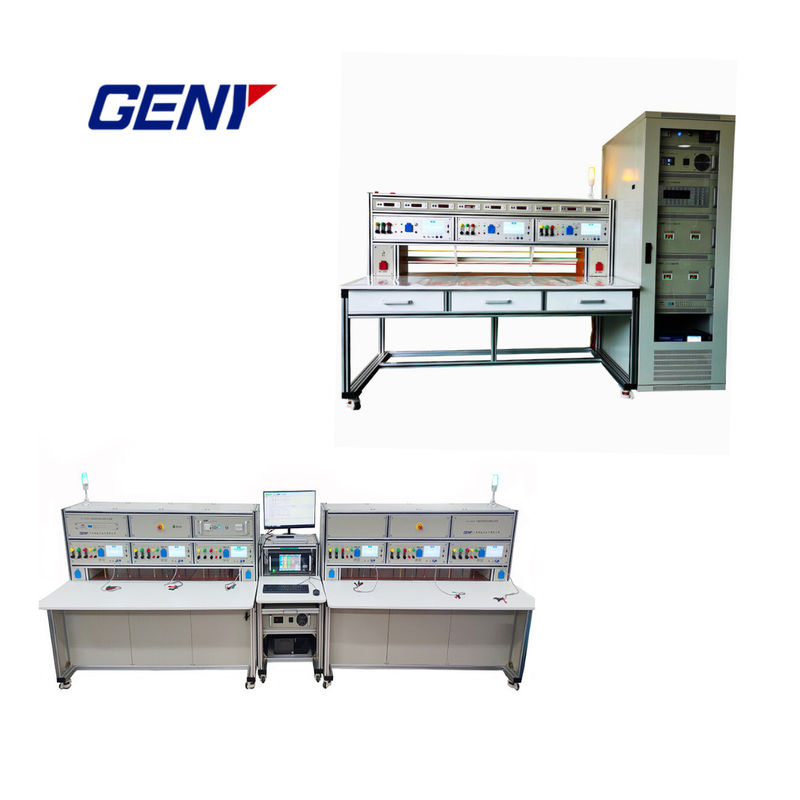

GENY is a professional energy meter test bench manufacturer with more than 30 years’ history, we are the first energy meter test bench exporter in China, and the equipment have exported to more than 37 countries. The test bench described and offered here is designed and manufactured in compliance with IEC 60736 to meet various requirements in calibration of electricity meters today and the future.
The Three-Phase Energy Meter Test System described here can simultaneously test 1…3, three phase or single phase energy meters.
Normally the following 3 phase energy meters can be tested by this Three-phase energy meter test system: 2 wire-, 3 wire- and 4 wire meters for active and reactive energy.
The Three-phase energy meter test system described here can be operated manually and automatically by PC, and it includes below main parts:
s1 power source which is used to generate tests voltage and current.
s1 reference standard meter with accuracy 0.01% which is the reference standard of the system.
s1 Software package (PC and Printer are optional as customer’s request)
s1 test frame with meter test rack for simultaneously testing 3 meters, and the rack are equipped with:
- 3 scanning head for mechanical or electronic meters
- 3 quick meter connection devices
- 3 individual error display
- 3 error calculator system
- 1 main switch
- 1 emergency stop button
- 1 indication lamp with three colors
Below is the detailed introduction of the main parts of the system.
| Parameter | Description |
| Accuracy Class | 0.01 Class |
| Optional Standard Meters | COM3003, RX-31, K8e, etc. |
| Number of Simultaneous Standard Meters | 3 or 6 pieces (up to 12 meter positions as per customer requirements) |
| Voltage Range (Phase-Neutral) | 3×30V to 480V |
| Power of Voltage Output | 3×200VA |
| Voltage Resolution | 0.001% |
| Voltage Stability | 0.005%/120s |
| Load Change Rate | 0.01% (entire linear load range) |
| Voltage Distortion | ≤ 0.05 % |
| Current Range | 3×1mA to 120A (up to 230A current as per customer requirements) |
| Power of Current Output | 3×300VA |
| Current Resolution | 0.001% |
| Current Stability | 0.005%/120s |
| Current Distortion | ≤0.05 % |
| Phase Adjustment Range | 0° to 360° |
| Phase Resolution | 0.01° |
| Frequency Adjustment Range | 45Hz to 65Hz |
| Frequency Resolution | 0.001Hz |
| Power Stability | 0.020~120A: 0.005%/120s 0.005~0.020A: 0.01%/120s 0.003~0.005A: 0.02%/120s |
| Harmonic Output | 1st to 64th harmonics, content: ≤40% |
| Error Display | Method: LED display Number: One display window per meter position |
| Operating Environment | Power supply: 3P4W 3×380V±10%, 50Hz±2Hz Ambient temperature: 20℃±5℃ Ambient humidity: 50%R.H±15%R.H |
For more information, please visit my official website:http://www.genymetertestequipment.com/
