| Brand Name: | GENY |

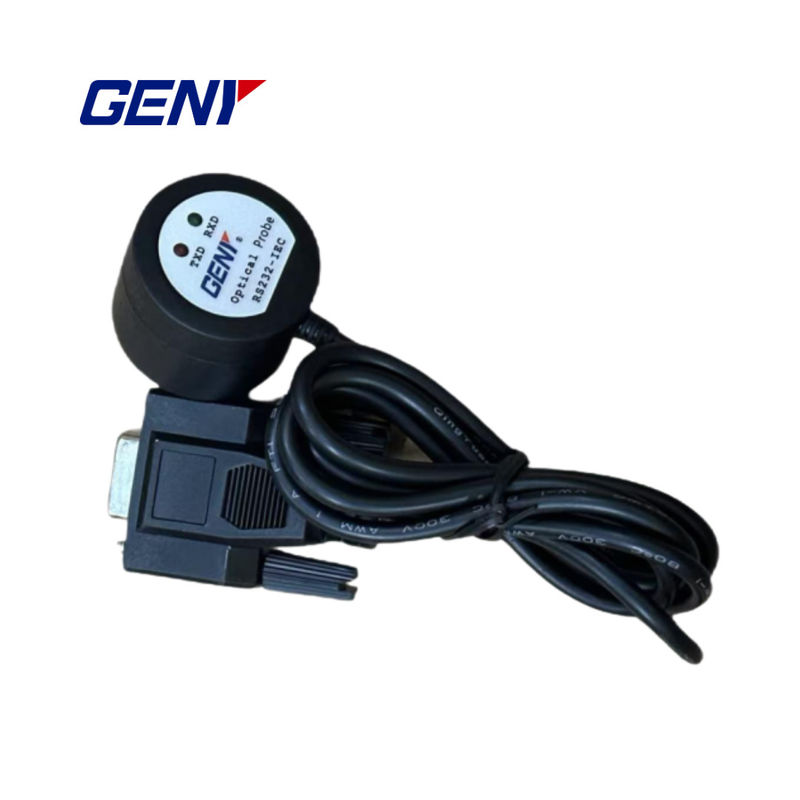

| Model Number: | YC-232/USB-IEC-TL |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T,L/C,D/P,T/T |
| Supply Ability: | 10 pcs/ 1 months |
|
Items |
Features |
|
Communication Interface |
RS232 |
|
Supported Standard |
IEC 62056-21 / ANSI / ANSI-Type2 |
|
Maximum B.R. |
115200 |
|
Connector |
RS232(DB9) |
|
Sensor Light Wave Length |
|
|
Cable length |
1.5M in normal and 1M/2M/3M for option |
|
Fastening |
Strong magnetic adhesion (in accordance with IEC 62056-21) |
|
Magnet Holding Power |
N40 / N54 (Optional) |
|
Mechanical |
Impact PBT+GF housing |
|
Environment |
Application temperature: -40℃~70℃ in normal |
|
Diameter & Height |
Optical port 32mm Diameter / H23mm |
|
Weight |
80gr |
|
Enclosure Material |
PBT+GF |
|
Protection Class |
IP 54 |
