Three-Phase DIN Rail Mounted Energy Meter Testing Equipment

Name: Three-Phase DIN Rail Mounted Energy Meter Testing Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC-1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC-1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Test Voltage Output(Phase-Neutral):

3x(24V~288V)(or Customized)

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Ambient Temperature:

-10°C~+40°C

Relative Humidity:

35%~85%

Product Description

Three-Phase DIN Rail Mounted Energy Meter Testing Equipment

Guangzhou GENY Electric Co., Ltd. keeps pace with global professional technological development, upholding continuous innovation in management, technology, and systems. We are committed to improving existing products and actively developing new ones to maintain our technological leadership.

Our products are sold across China and exported to more than 40 countries and regions, including France, Germany, the United Kingdom, Spain, Australia, Singapore, India, South Korea, Vietnam, Brazil, Russia, Hong Kong, and Taiwan.

In international tenders, GENY has stood out from competitors from Germany, the United States, and other countries with superior quality and competitive pricing. We are proud to be the trusted supplier of electricity meter test equipment for globally renowned meter manufacturers such as Landis+Gyr (Switzerland), LG (Australia), EDMI, EMAIL (Australia), AMPY (UK), LEMZ (Russia), ACTARIS (France), Itron (Indonesia), and CETT (Vietnam).

GENY’s products have contributed to elevating China's reputation in the global electrical measurement market.

Product Details

Main Technical Specifications	Description
Power Supply	Three-phase four-wire 3×220V/380V±15%, 50/60Hz±2Hz
Ambient Temperature	-10℃ to +40℃
Ambient Humidity	35% to 85% R.H.
Output Voltage Range	3×0~480V
Output Voltage Power	>10VA (per meter position/phase)
Voltage Resolution	≤0.01%
Voltage Stability	≤0.02%/120s
Load Change Rate	≤0.01%
Voltage Distortion	≤0.3% (full linear load range)
Output Current Range	3×0~120A
Output Current Power	>15VA (per meter position/phase)
Current Resolution	≤0.01%
Current Stability	≤0.02%/120s
Current Distortion	≤0.3% (full linear load range)
Phase Adjustment Range	0~360°
Phase Resolution	0.01°
Frequency Adjustment Range	45~65Hz
Frequency Resolution	0.01Hz
Output Power Stability	≤0.02%/120s
Error Display	Signal Reading: Read from electronic pulse signal end or LED optical signal end<br>Display Method: LED digital display
Communication Protocol	Fully complies with the regulations of DL/T645-2007 and its two filing documents DL/T645-2009-001/002.

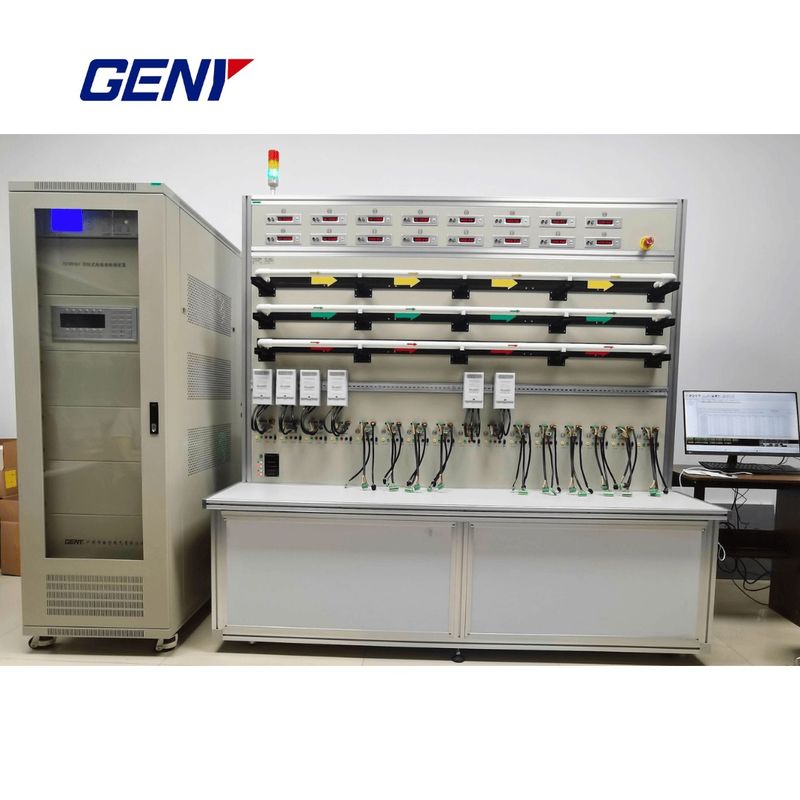

Three-Phase DIN Rail Mounted Energy Meter Testing Equipment 0

For more information, you can visit our website:http://www.genymetertestequipment.com/
